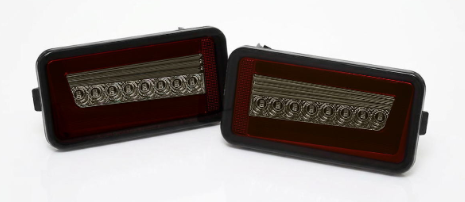

LED Tail Lamp Meteor Version Red Smoke Lens for Suzuki Carry Truck DA16T DA63T

Color : Red Smoke Lens

【Vehicle Compatibility】

〈SUZUKI〉
◆ Carry Truck DA16T
◆ Super Carry DA16T
◆ Carry Truck DA63T / DA65T *1

〈NISSAN〉
◆ Clipper Truck DR16T
◆ NT100 Clipper Truck DR16T

〈MAZDA〉
◆ Scrum Truck DG16T
◆ Scrum Truck DG63T *1

〈MITSUBISHI〉
◆ Minicab Truck DS16T

*1: Vehicles manufactured before May 2012 require separate rear reflectors to comply with applicable safety regulations.

【Compatibility Notes】

◆ Compatible with vehicles manufactured after the partial specification update introduced in January 2026.

◆ The opening and ending animation functions cannot be used on vehicles without keyless entry, as these functions operate in conjunction with the hazard-light confirmation flashes when locking and unlocking the vehicle.

◆ The animation functions cannot be used on DA63T Carry models from the 9th generation onward if the vehicle does not have a hazard-light answer-back function, even when equipped with keyless entry.

◆ Please check your vehicle’s specifications before purchasing.

【Product Features】

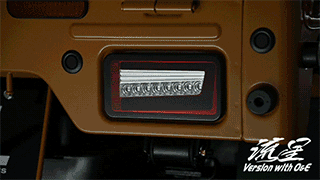

〈Opening & Ending Animation Function〉

These tail lamps feature an opening and ending animation that illuminates the position lights in conjunction with the vehicle’s keyless locking and unlocking operation.

The stylish lighting animation creates an impressive appearance when entering or leaving the vehicle at night.

This function is available only on vehicles equipped with keyless entry and a hazard-light answer-back function when locking and unlocking.

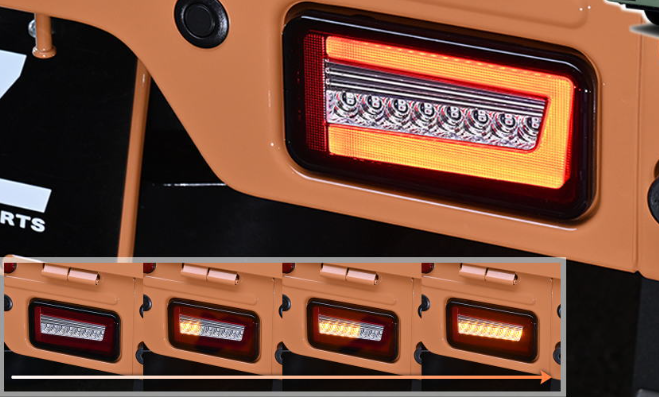

〈Switchable Sequential Turn Signals〉

The sequential turn signals illuminate from the inside toward the outside.

The turn signal mode can be changed between sequential and standard flashing by connecting or disconnecting the bullet terminals located on the back of the lamps.

◆ Bullet terminals disconnected: Sequential turn signal mode
◆ Bullet terminals connected: Standard flashing mode

〈Crystal LED Light Bar〉

The position and brake lights feature a crystal LED light bar design that conceals the individual LED bulbs.

The crystal-style design also provides a clean and stylish appearance when the lights are turned off.

The position and brake lights illuminate at two different brightness levels.

〈Built-In Hyperflash Prevention Resistors〉

Built-in resistors help prevent hyperflashing, which can occur when replacing conventional halogen bulbs with LED lamps.

〈Plug-and-Play Coupler Design〉

The tail lamps are designed to replace the original factory lamps and connect using the vehicle’s existing couplers.

Additional wiring is required to use the opening and ending animation functions.

Please refer to the included installation instructions for further details.

【Important Information】

The opening and ending animation functions will operate only if the vehicle’s hazard-light answer-back system flashes as follows:

◆ Twice when unlocking
◆ Once when locking

The functions may not operate correctly if the vehicle is equipped with an aftermarket security system, aftermarket relay, or other modified electrical equipment.

【Available Lens Colors】

◆ Red/Clear Lens
◆ Red/Smoke Lens
◆ Clear Lens
◆ Smoke Lens

【Package Contents】

◆ Left and right LED tail lamp assemblies

◆ Conversion harness for DA63T and DA65T models
(Not used on DA16T, DR16T, DG16T, or DS16T models)

◆ Wiring parts for the opening and ending animation functions
(Not required if these functions will not be used)

Professional installation is recommended.

Please verify your vehicle model, keyless entry system, and hazard-light answer-back function before purchasing.
